UHF Radio Mic Holder Pillar Bracket Mount | Generic Size suits Most Models

UHF Radio Mic Holder Pillar Bracket Mount | Generic Size suits Most Models

$30.00 AUD
$30.00 AUD
Sale Sold out - check back soon
Shipping calculated at checkout.
Color

Been chasing a way to securely mount your UHF Mic Handset? Don't want to go drilling holes in your new rig or the double sided tape keeps falling off? Then check-out this rock solid option, ready to attach your existing GME magnet.

https://youtube.com/shorts/xK34jYc8-ns?si=gFAAT5rwSuoWRsyu

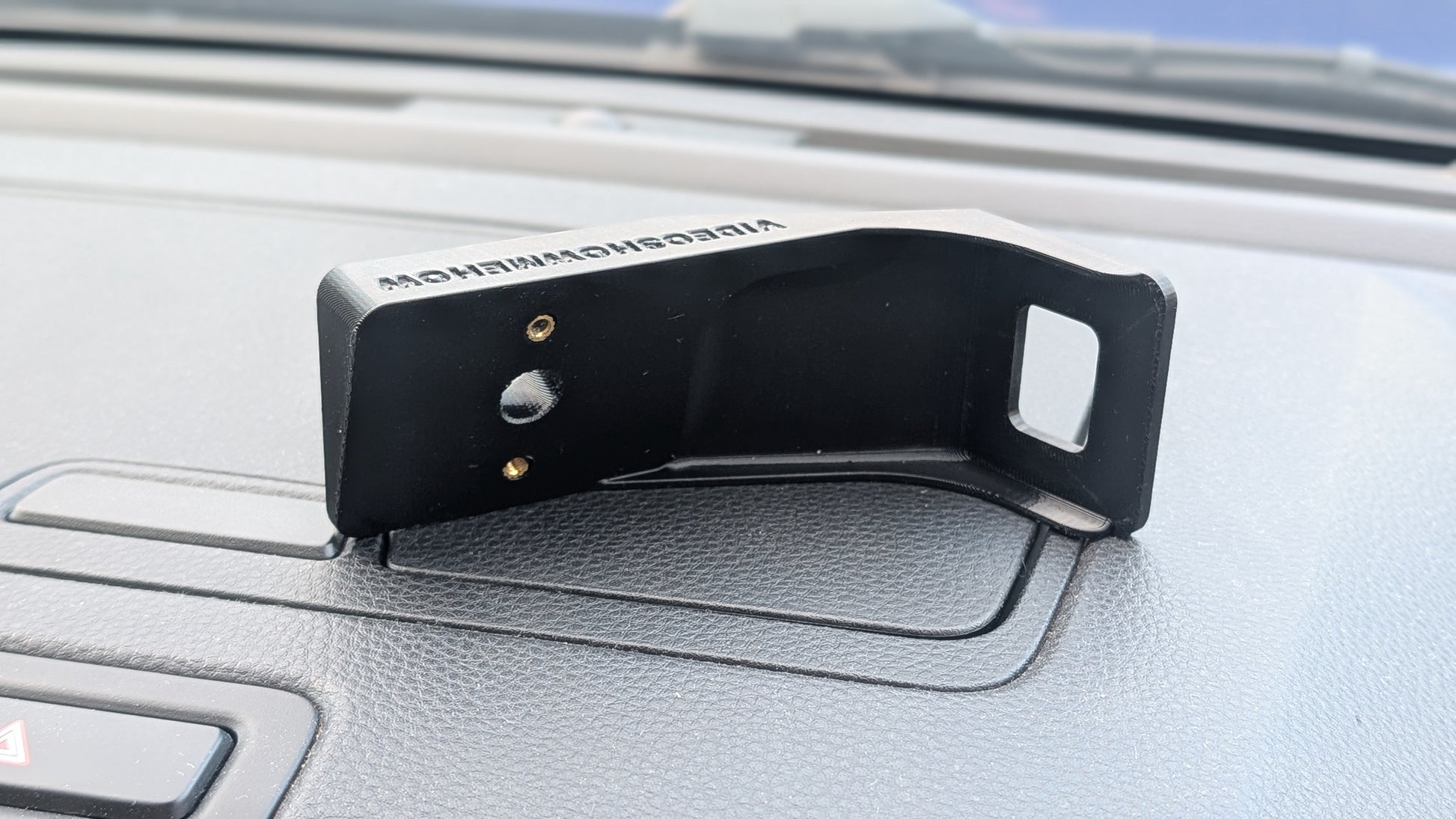

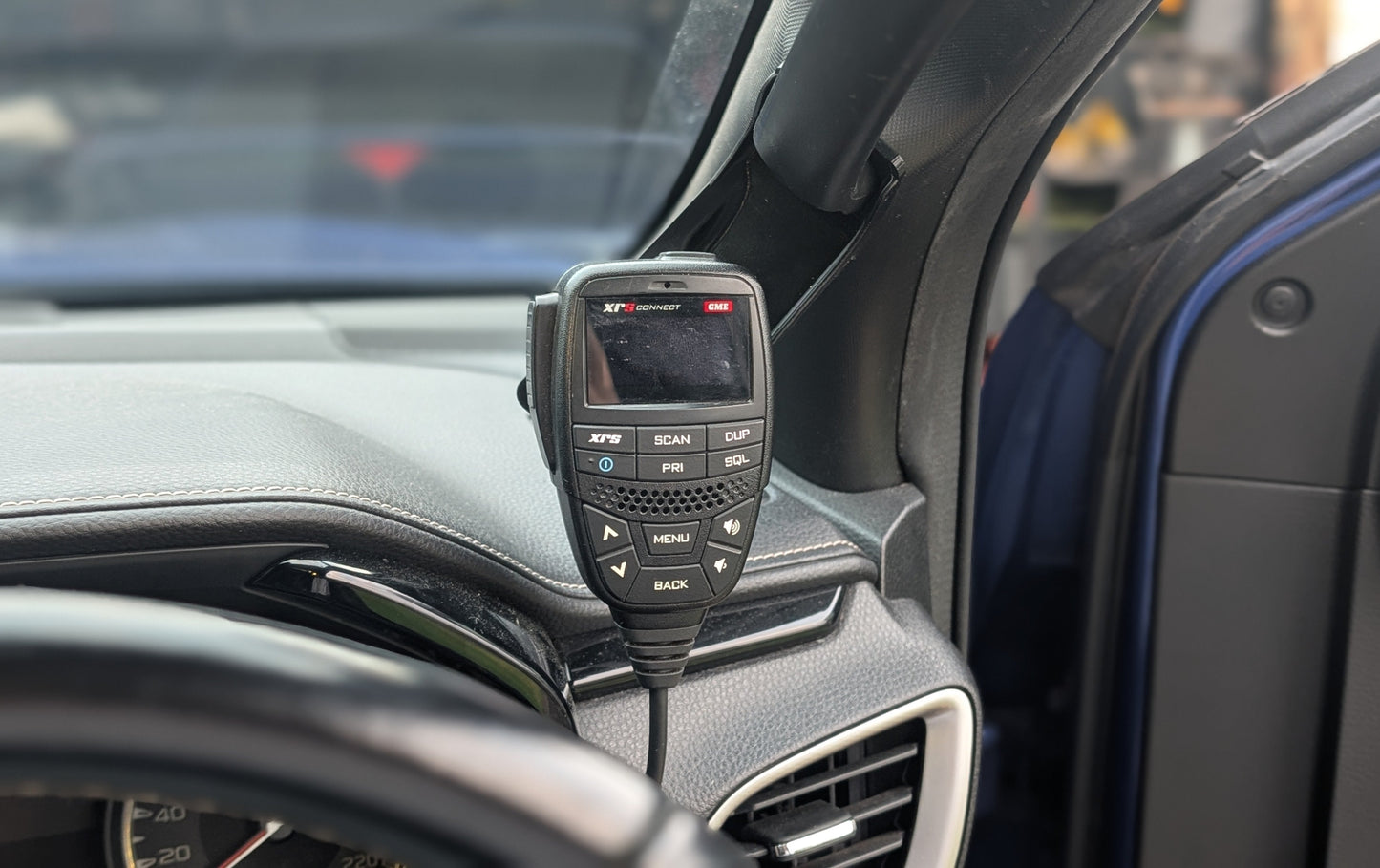

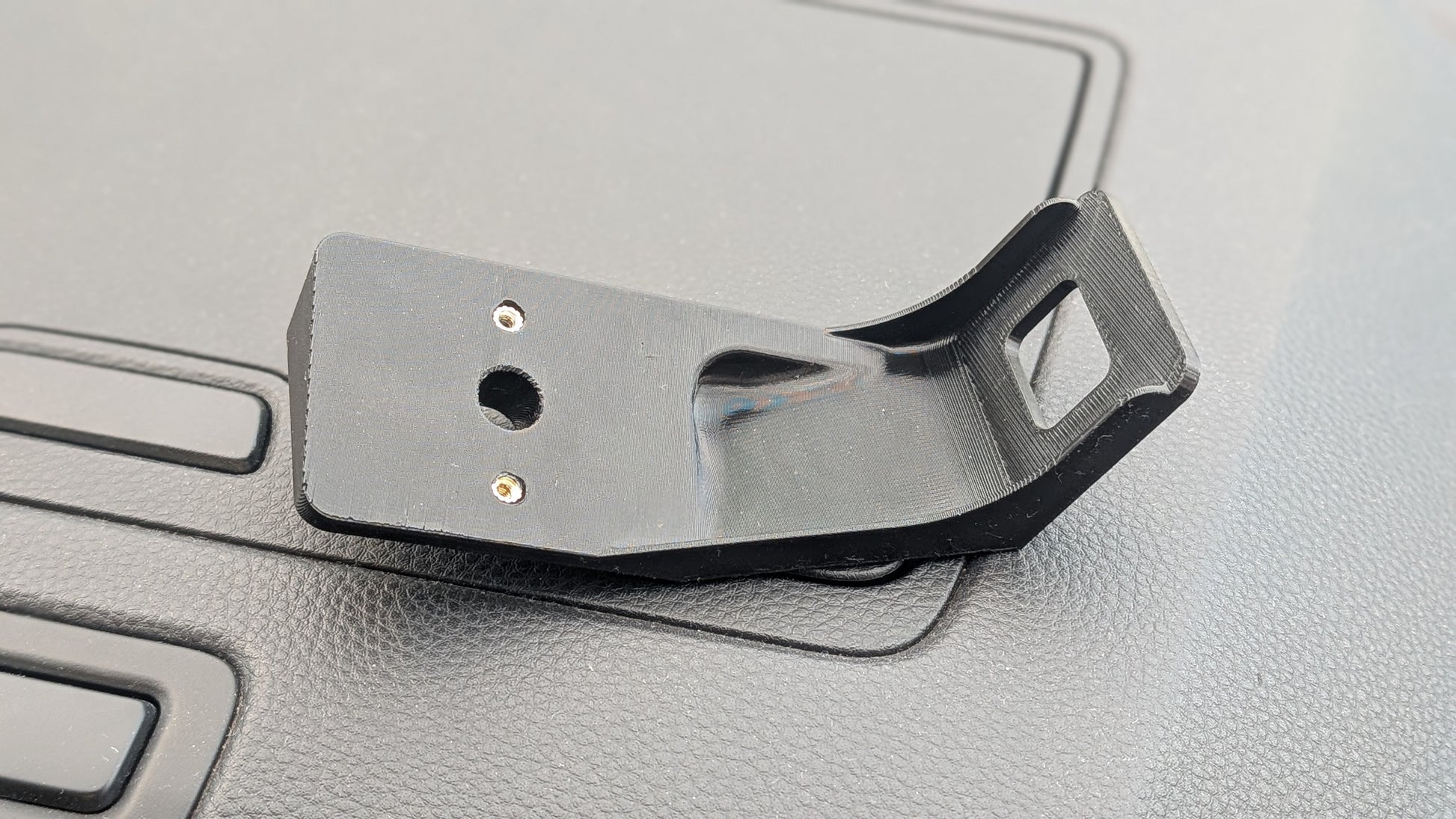

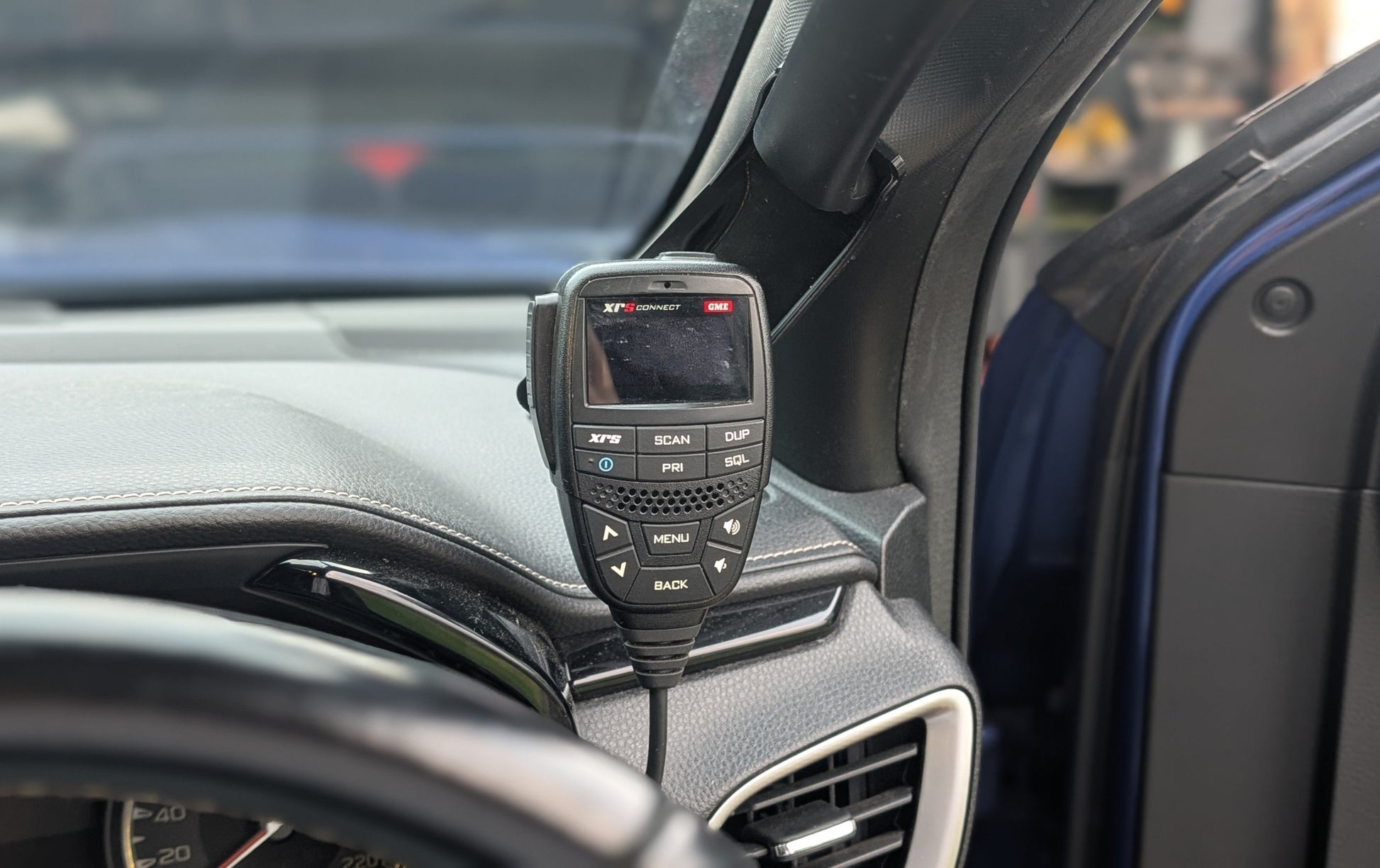

Custom deisgned and 3D scanned for a perfect fit, this is bracket ready to fit under your grab handle to perfectly position your UHF Mic Handset Unit in the dead space near your pillar. It doesn't impact your air or demister vents, no impact to blind spot and still full easy access to your grab handle. Fully reversable in 2 mins and available in a range of colours. Bracket has a 10mm centre hole in case you want to add your own mount.

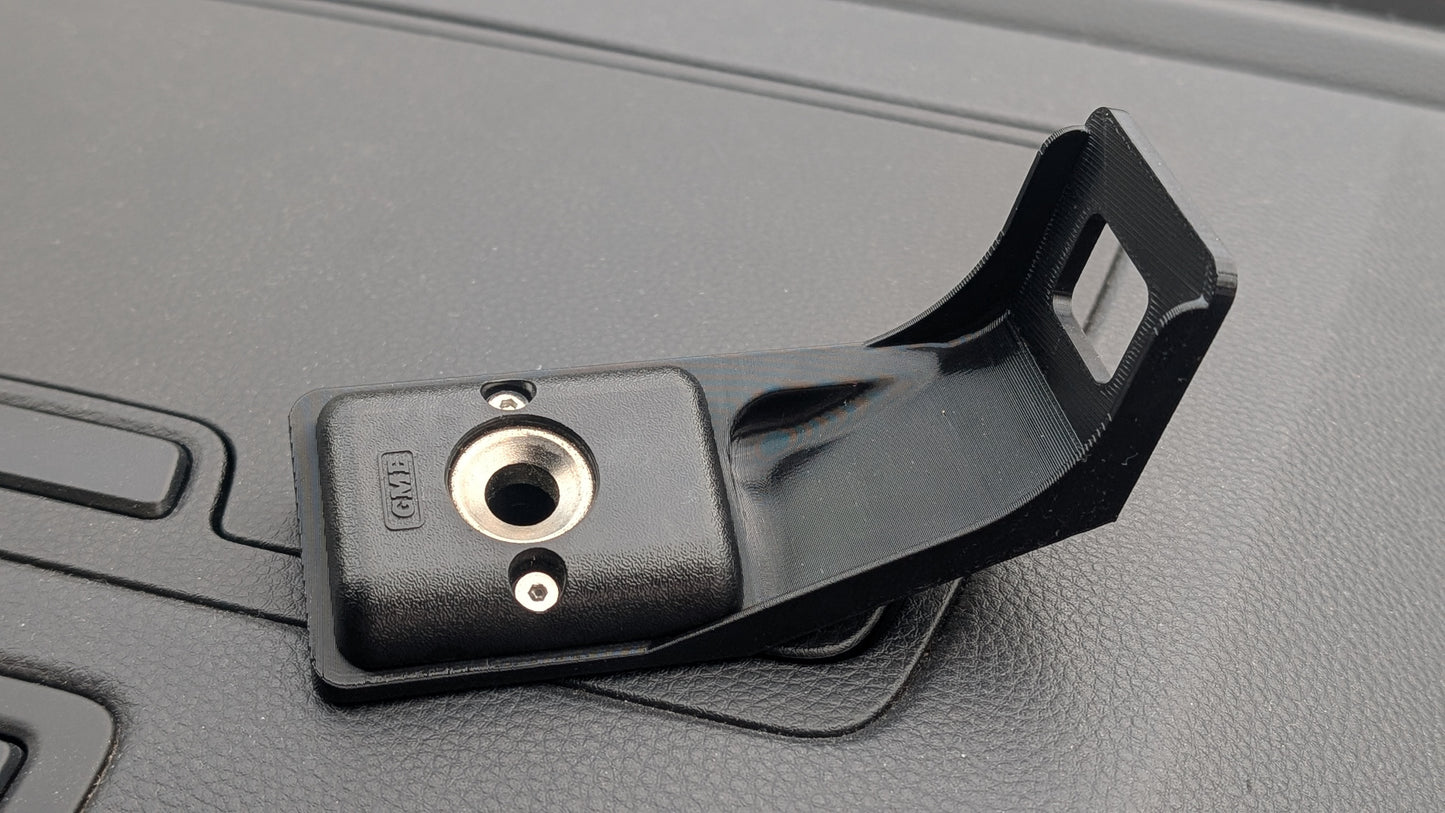

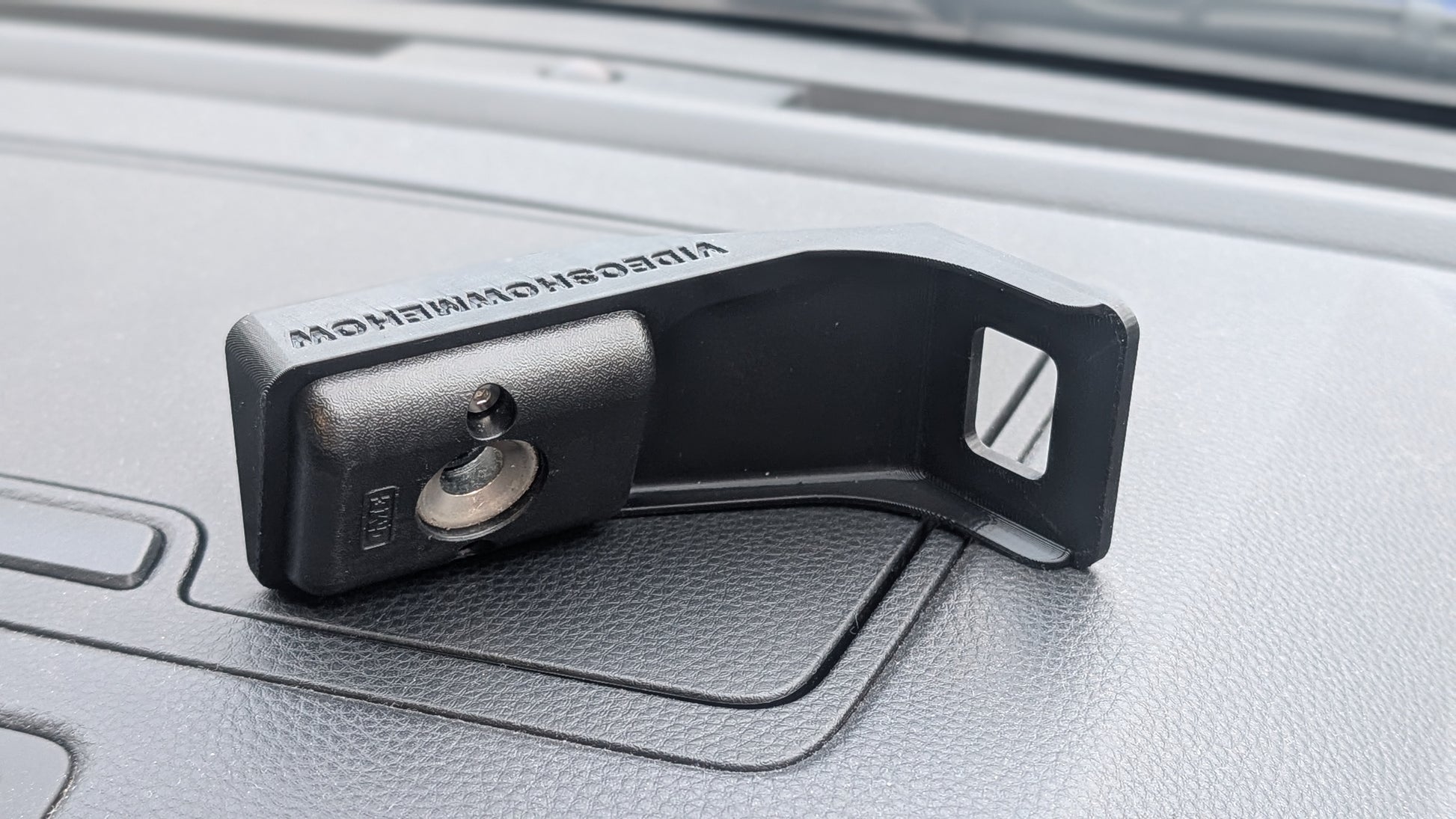

This version comes with M3 inserts ready to install your own GME mag mount as seen in the item pics.  If you don't have one of these, worth checking out the other Magnetic Version on the website shop.

Pillar cut out size (check your fit) - 18mm x 24mm

How to install:

  1. If installing your own GME Mag Mount, disassmble. Otherwise, skip to step 3.
  2. Remove top half and using screws provided screw into bracket
  3. Pry off the small cover at the base of your grab handle using a small flat head screwdriver
  4. Using a phillips head screwdriver, remove the bottom grab handle screw

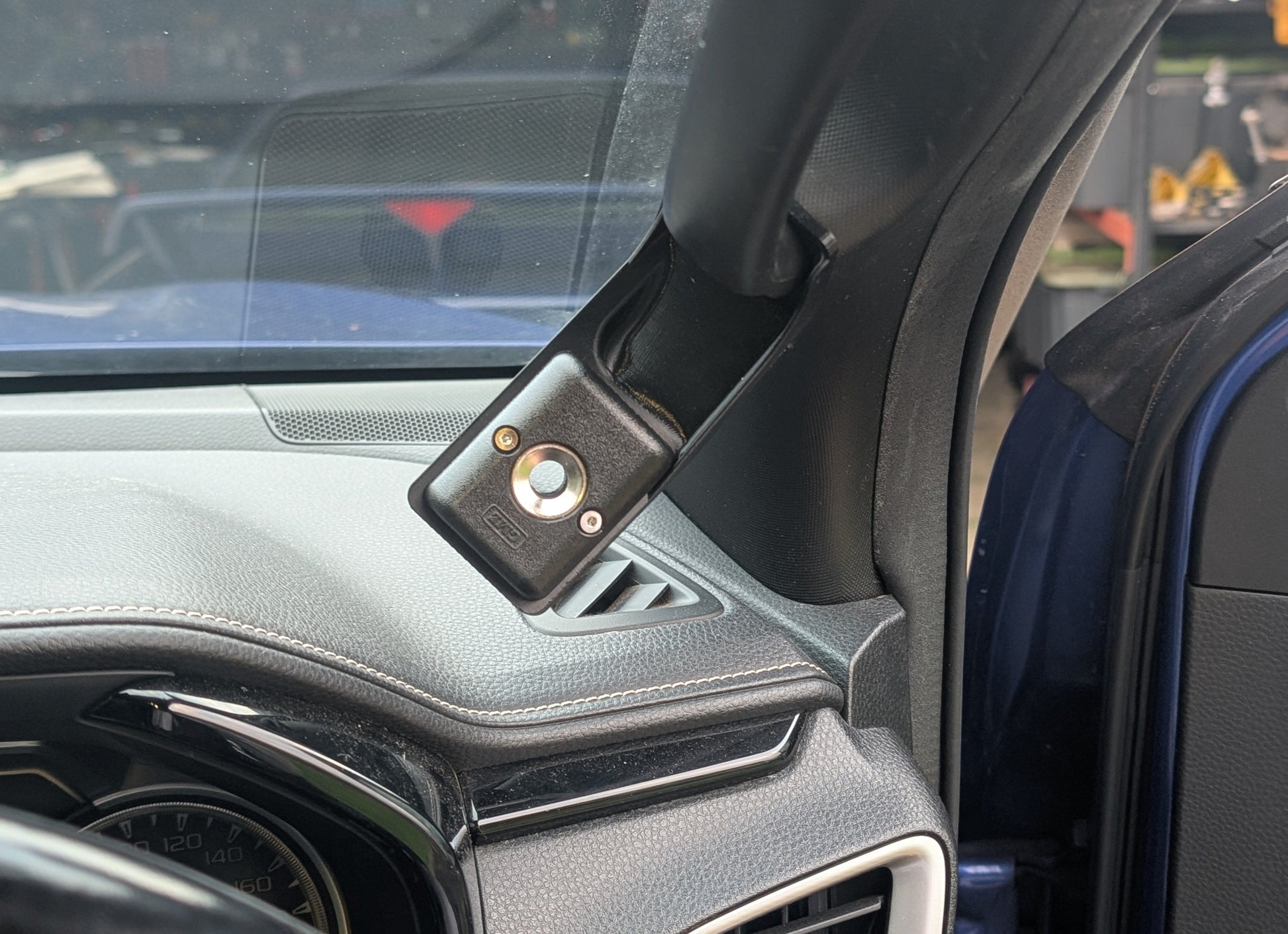

  5. Slide the bracket underneath locating the cut out and reinstall the screw - just needs to be regular tight, not maniac tight.
  6. Ready to go!

Comes with:

  1. UHF mic pillar mount bracket
  2. Pre-installed brass M3 inserts
  3. 2x M3 screws

Note: pillar cut out deisgned for a flush fit on Isuzu DMAX/MUX & Mazda BT50 however will likely fit any pillar mount with the same bolt style attachment.

PONDERED, DESIGNED, MADE AND POSTED IN AUSTRALIA.

Fast Shipping! - Sent with tracking usually next business day with Authority to Leave by default, please contact if you need different delivery instructions. Unable to deliver to PO Boxes or Lockers unless using Australia Post shipping option.
